| Place of Origin |
China (Mainland) |
| Model Number |
104207R |
| Type |
Other |
| Voltage |
12V |
| Lamp Type |
LED |

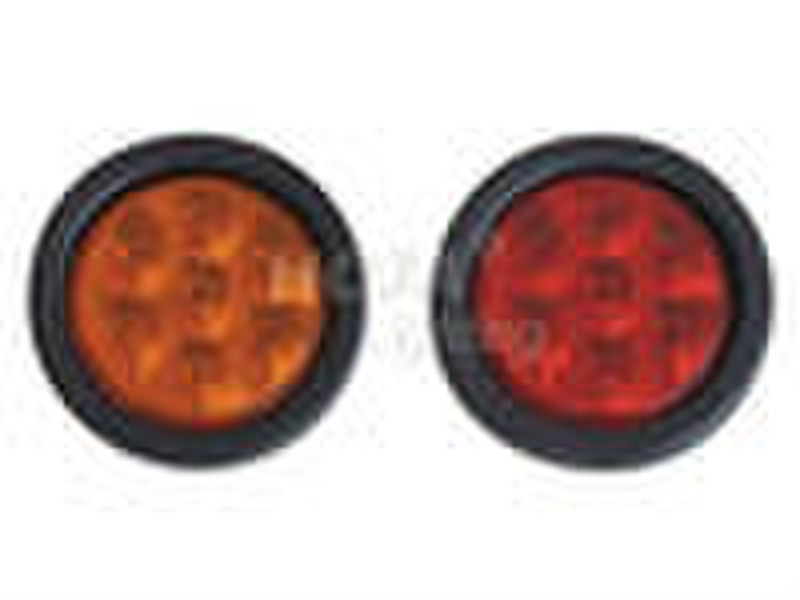

4''RoundLEDLight,STOP/TURN/TAIL Choice of 7 LEDs, 12 LEDs or 32 LEDs versions; super bright LEDs of super flux (P4) type or 5mmStop, Turn, Tail functions combined.Engineered lens opticsPC lens and housing welded together to ensure a permanent and water proof seal. LED circuit board coated with conformal coating for excellent moisture and environmental protectionRight angle 3-prong plug assembly, PVC grommet mounting; also available in flange mount version by special orderSuper long life span up to 100,000 hoursMeets DOT FMVSS 108/SAE requirements except Amber versions of 7 LEDs (104207A) Rated for 12V, tested to 13.8VAlso available in multi-voltage 10 30V operating range, or 24V (special order only – minimum may apply)Part No. DescriptionInput Voltage Nos. of LEDs LED Type Lighting Color Current Draw (mA) at 13.8V 104207R Grommet Kit 12 V 7 P4 Red 15/150 mA104207A Grommet Kit 12 V 7 P4 Amber 150 mA104207C Grommet Kit 12 V 7 P4 White 150 mA104207RM Grommet Kit 12 24 V 7 P4 Red 10/100 mA104207AM Grommet Kit 12 24 V 7 P4 Amber 100 mA104207CM Grommet Kit 12 24 V 7 P4 White 100 mA104200G Grommet only for 4” Round Light 906403P Right Angle 3 Prong Plug for 4” Round Light
